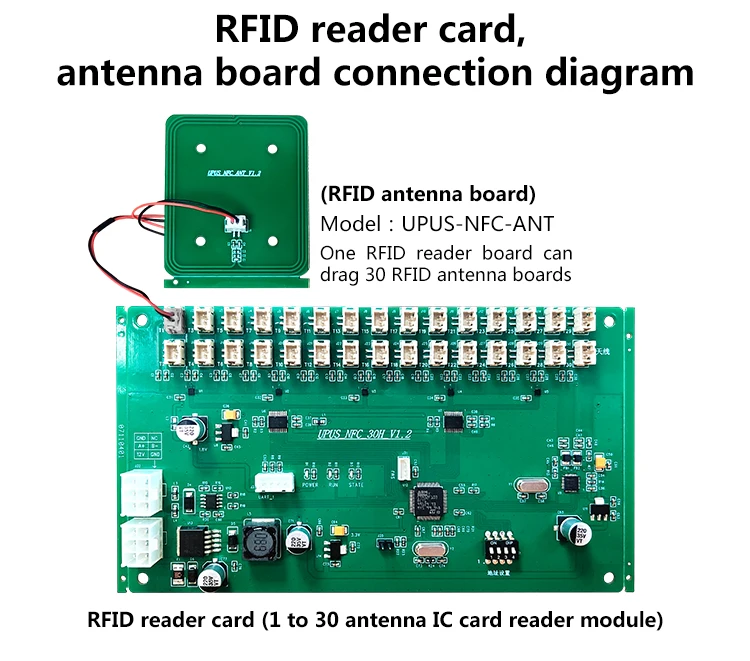

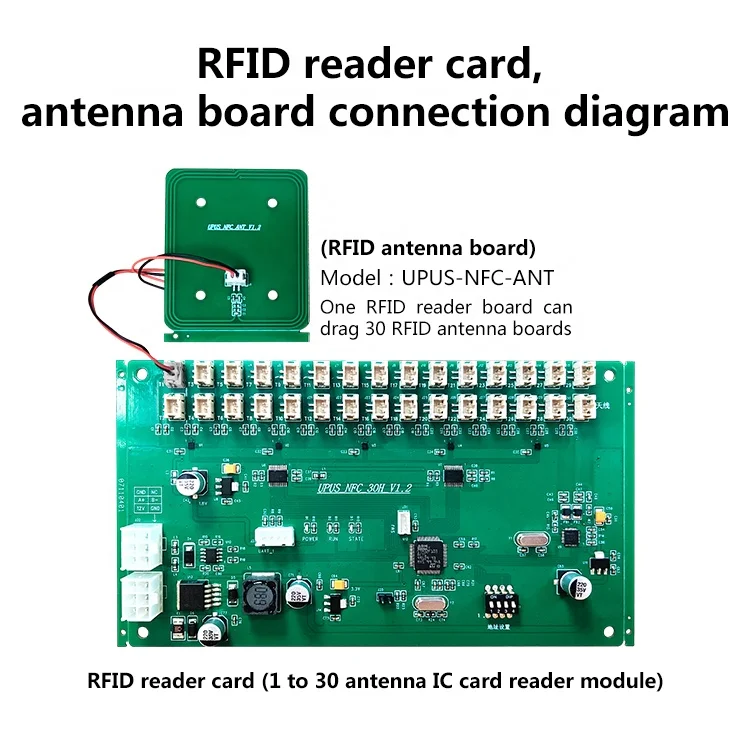

This card reader supports 30-channel parallel reading. Based on 13.56MHz high-frequency RFID technology, it can quickly identify ISO 14443/15693 protocol tags and is suitable for scenarios such as smart cabinets, attendance systems, and retail settlements. It adopts a multi-antenna array design, with a wide coverage range for a single device. It is compatible with mainstream card types such as MIFARE and NFC, and the reading distance can reach 5-10cm (depending on the tag type).

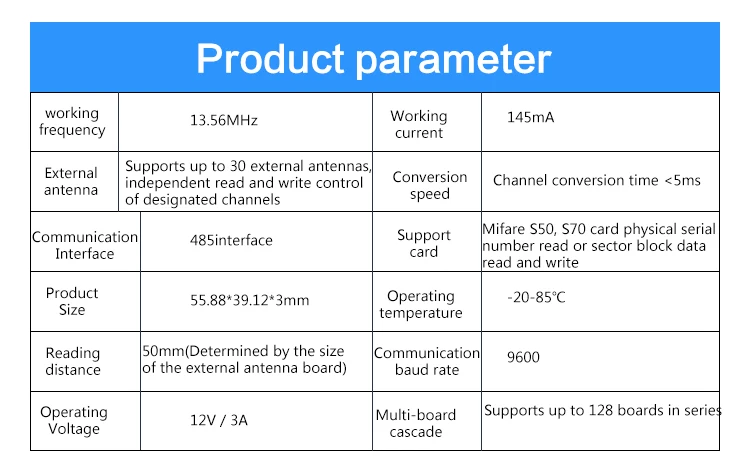

item |
value |
Place of Origin |
Guangdong China |
Brand Name |
UPUS |
Product Name |
30ch High frequency RFID card reader |
Application |

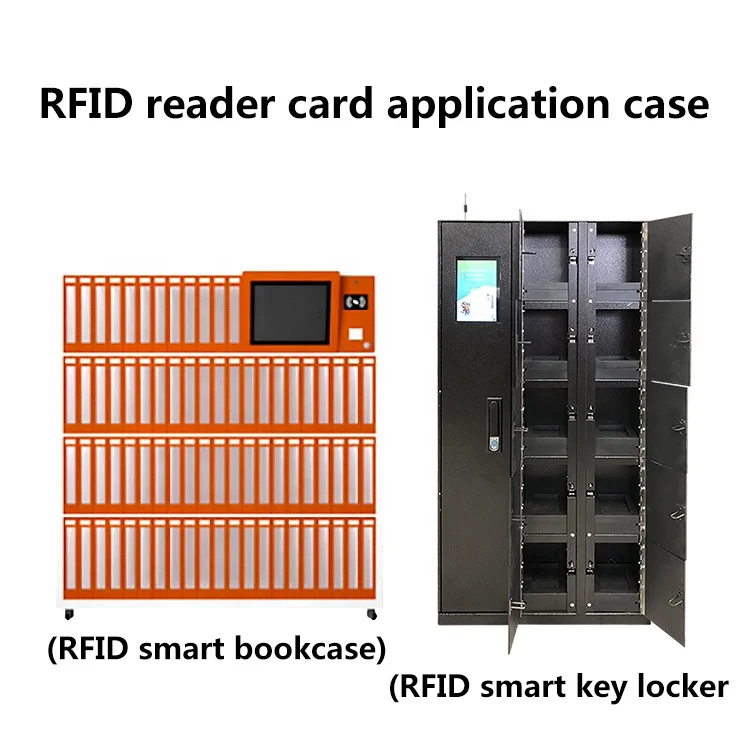

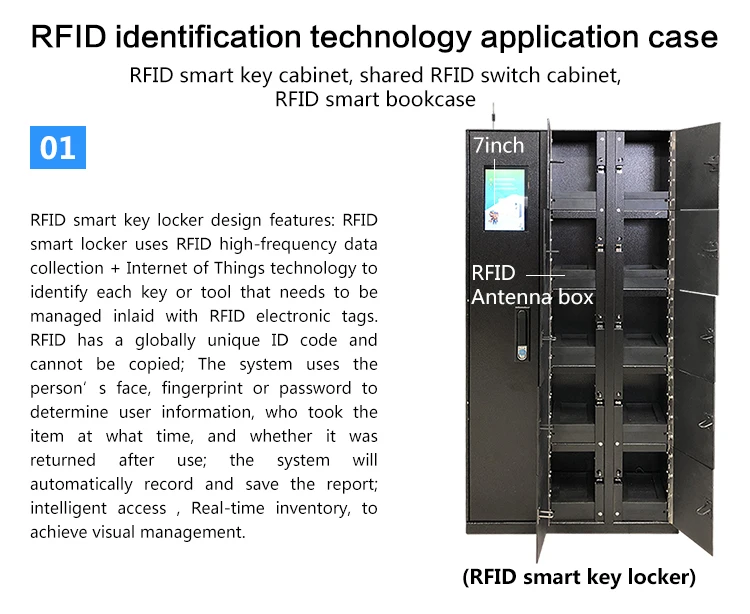

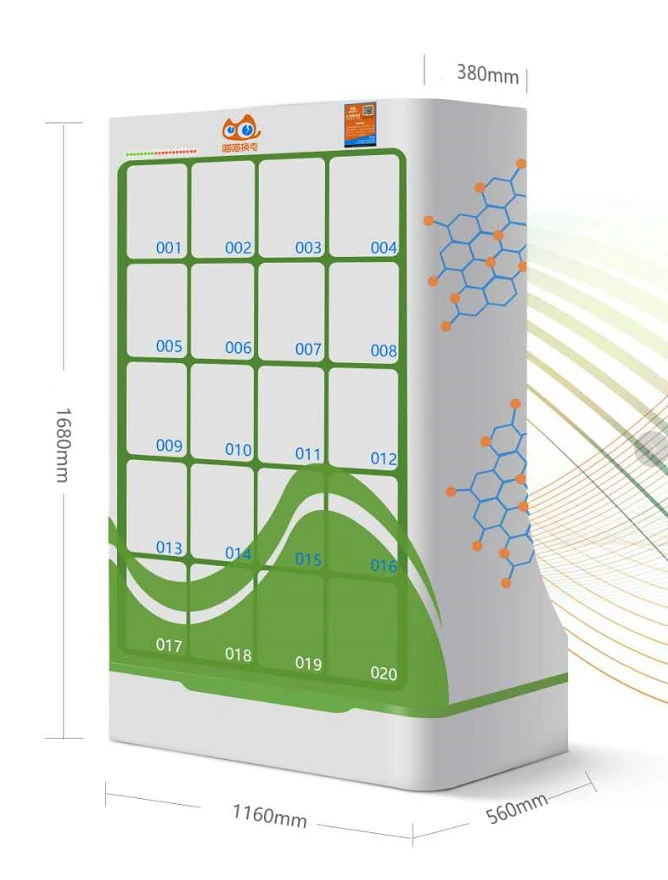

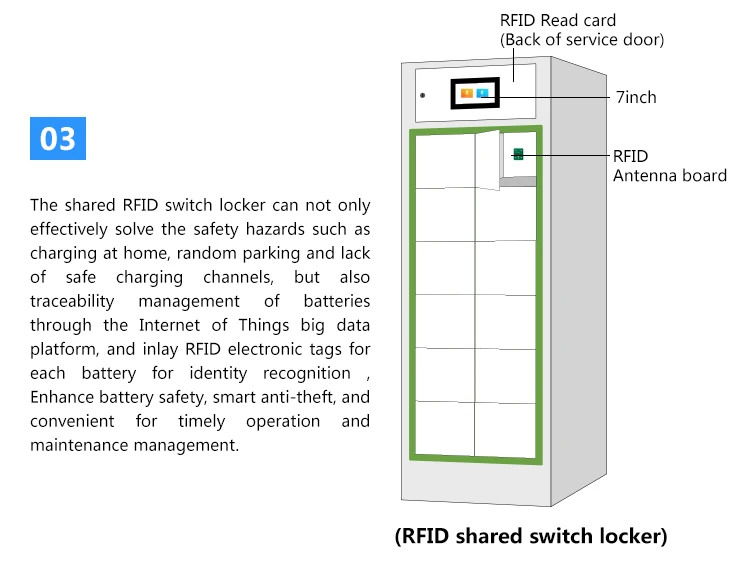

Access Control System / smart RFID locker |
Power Supply |
DC 12V |

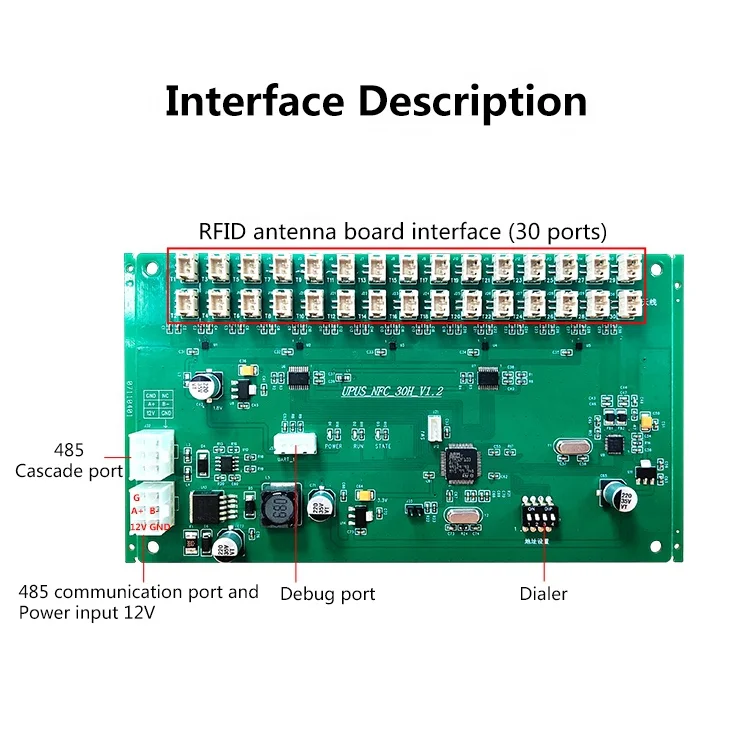

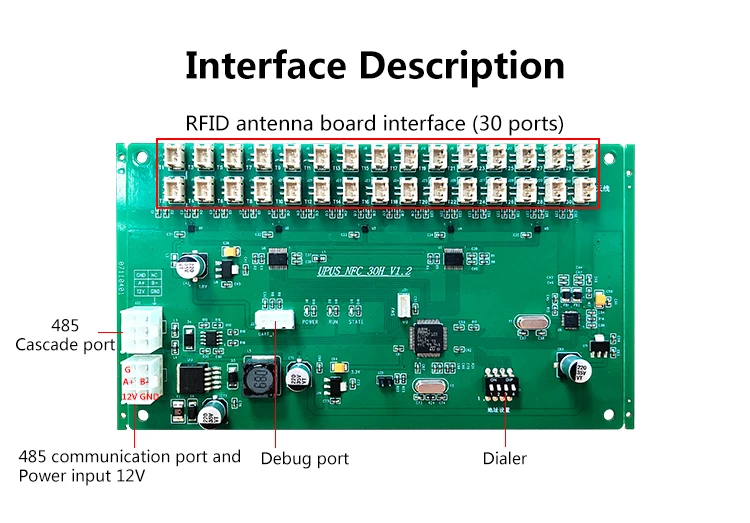

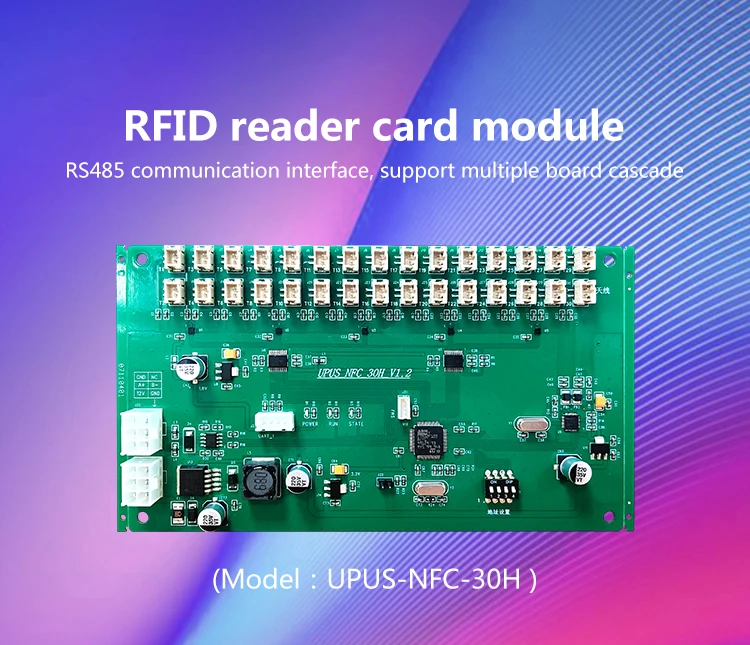

Interface |
RS485 |
Support |
ISO 14443A |
Color |
Green |
Supporting Card |
IC M1 MF NFC Etc |
Read range |
0-5cm |

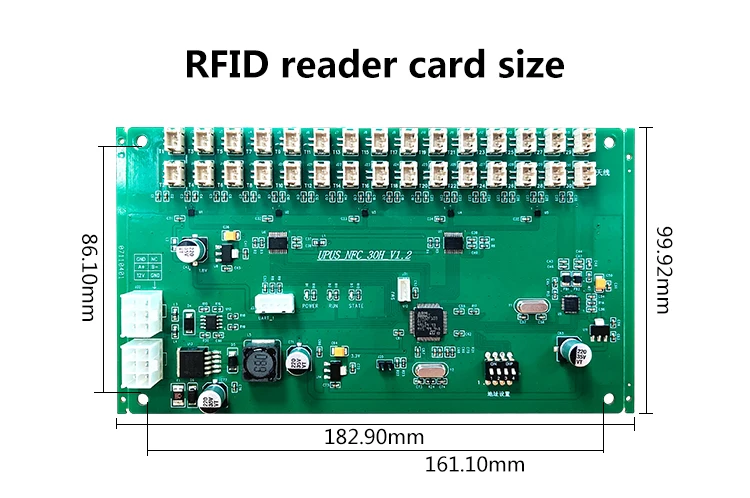

Dimension |
182.9*99.92MM |
Chip |
STM32 |
