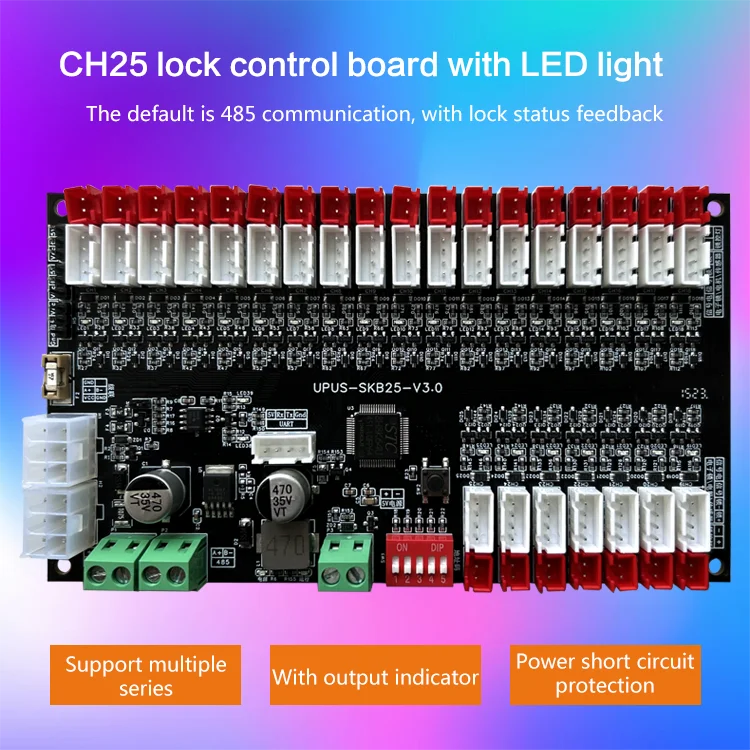

Electrical parameters of 25-channel lock control board with LED lights |
value |
|

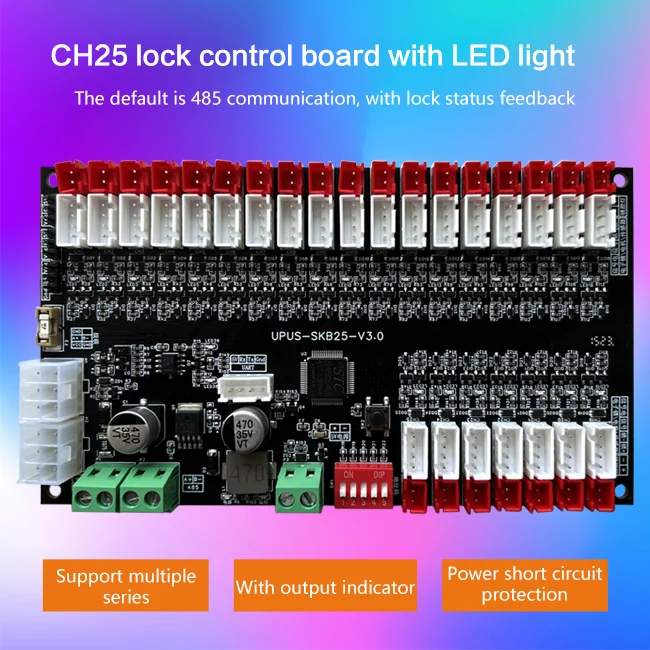

25-channel lock control board |
With unlock status feedback |
|

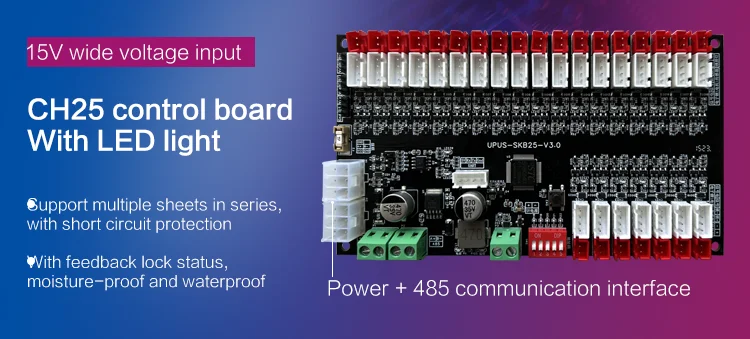

Operating Voltage |
12V to 24V wide voltage |
|
Communication method |
RS485 communication / baud rate: 9600 |
|
State feedback method |
Feedback through query commands,and active feedback function can be selected by remarks |
|

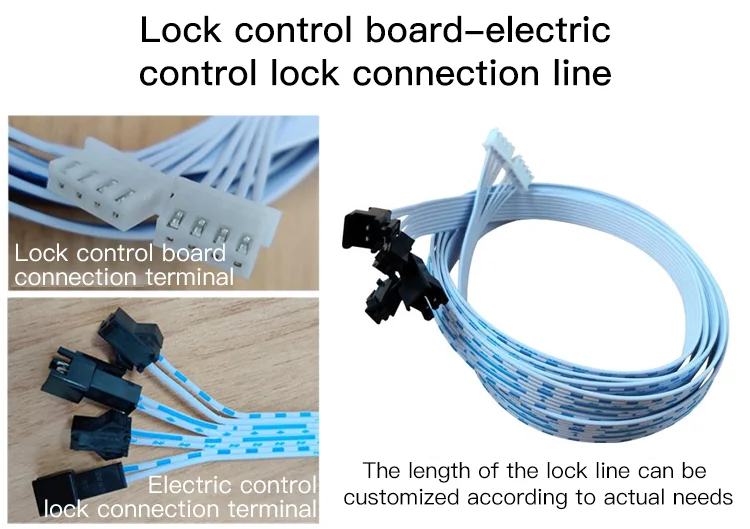

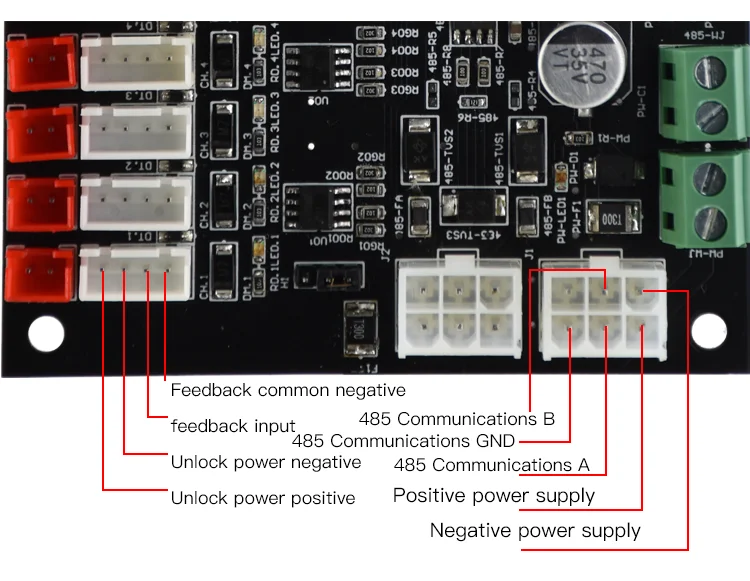

Connection method |
Support TTL / 232 / USB / RS485 connection methods |
|
Unlock output current |
Maximum 7A modify the unlocking output time |
|

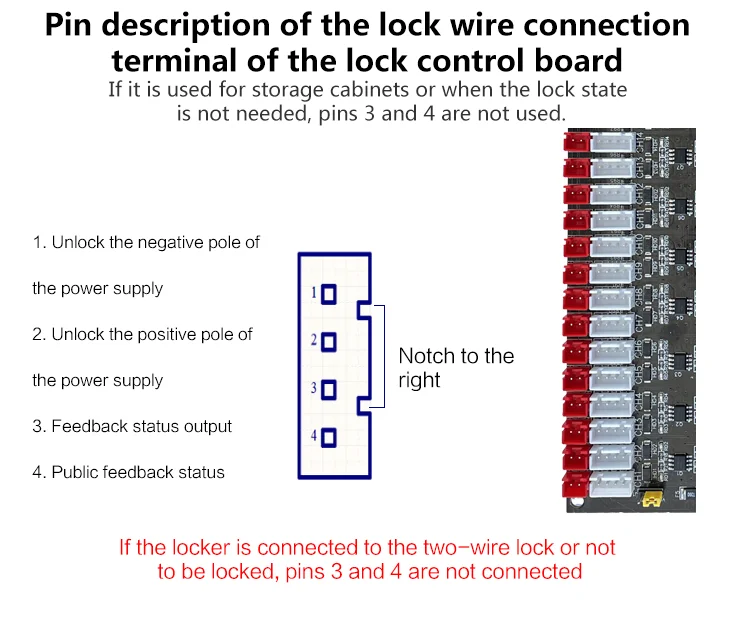

Type of control lock |
Locks suitable for door opening feedback and door closing feedback |
|
Control the number of electric locks |
25 way |
|
Standby power consumption |
10mA |
|

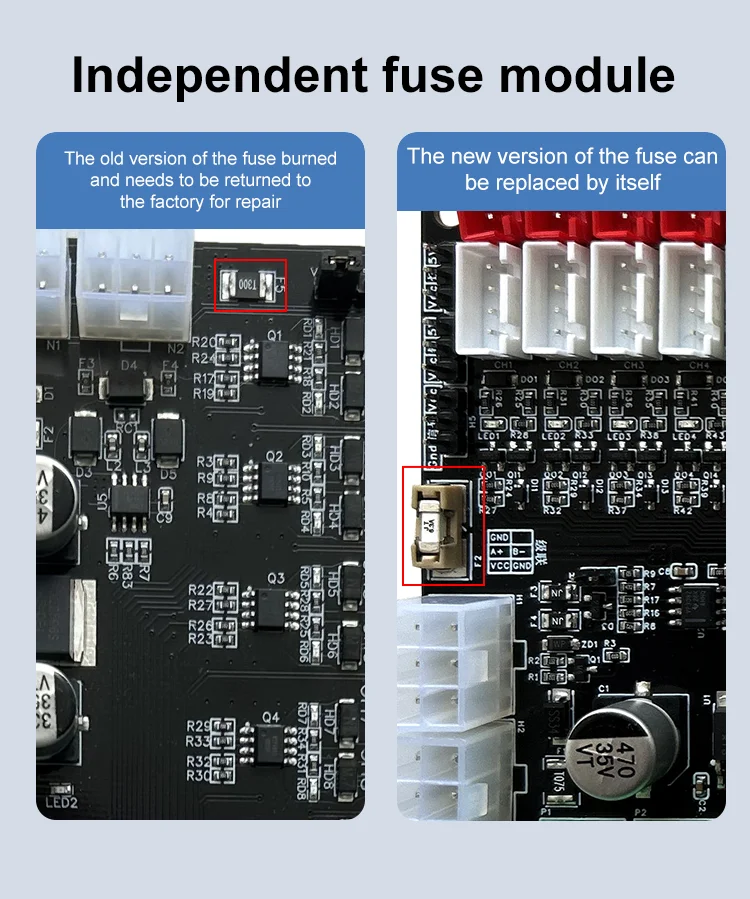

Short circuit protection trigger |
3A |
