The smart laundry cabinet equipped with a touch screen supports scanning codes to store clothes and notifying to pick up items, saving time on manual laundry. Zoned storage ensures the privacy of clothes and is suitable for scenarios such as communities and apartments. 24-hour unattended operation realizes the full-process automation of "storing clothes - washing - drying - picking up items", enhancing the convenience of the laundry experience with technological services.

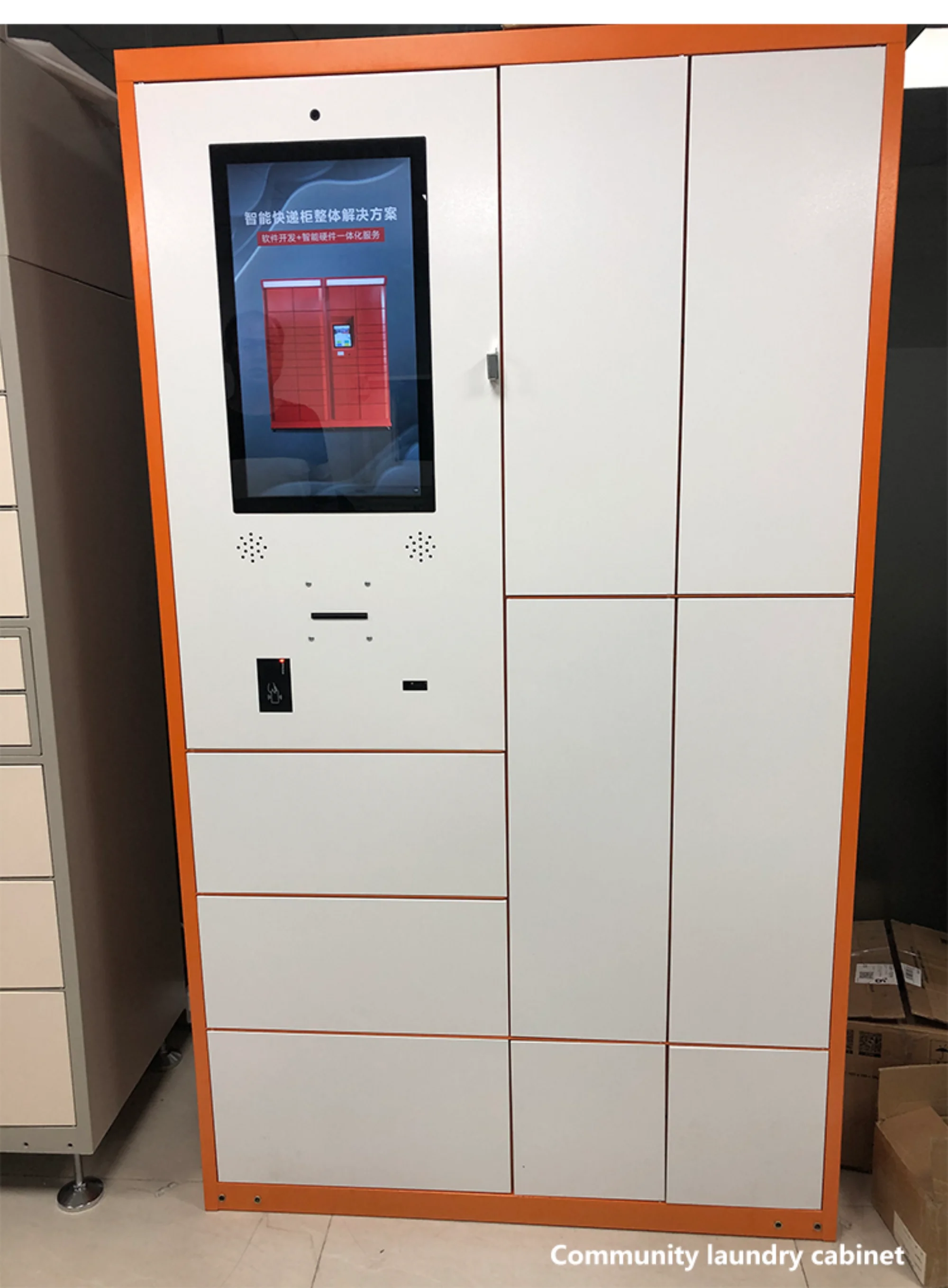

Smart Laundry Locker
The intelligent laundry locker is an intelligent laundry cabinet that integrates self-service sending and receiving clothes,
housekeeping services, and community life services, It is mainly used in public places such as communities and
schools.It provides users with extremely simple laundry services, equipped with mobile Internet,Internet of Things and
other related technologies, combined with laundry software, to build an intelligent self-service laundry platform. It is a
new washing model that integrates artificial intelligence in the laundry industry with Internet and life services.
Basic parameters
Industrial all-in-one computer: Android 11 system
capacitive touch screen Support 4G/WIFI/RJ45 network connection
Electronic control lock: 12V
unlocking time:≤1 second
Lock control board: RS485 serial port communication
Power supply: AC100V-240V(50-60HZ)
Temperature: Industrial grade (-10°C~50°C)
Barcode Scanner: Fully automatic QR code scanner
Box material: high-quality cold-rolled steel sheet or galvanized sheet
Specification/Color: Customizable
Network protocols: TCP/IP protocol

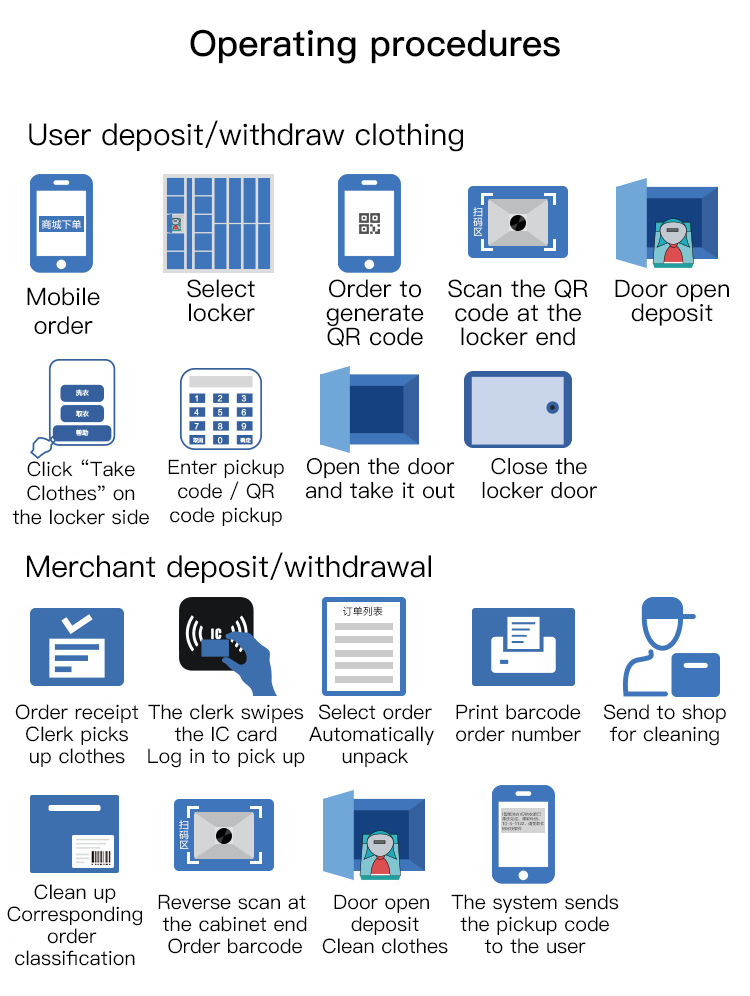

Operating procedures
User deposit/withdraw clothing：
Mobile order-Select locker-Order to generate QR code-Scan the QRcode at thelocker end-Door open deposit-
Click “Take Clothes” on the locker side-Enter pickup code /QRcode pickup -Open the door and take it out-Close the locker door
Merchant deposit/withdrawal：
Order receipt Clerk picks up clothes-The clerk swipes thelC card Log in to pick up-Select order Automatically unpack
-Print barcode order number-Send to shop for cleaning-Clean up Corresponding order classifcation-
Reverse scan at the cabinet end Order barcode-Door open deposit Clean clothes-The system sends the pickup code to the user
FAQ：
1.Why should we choose UPUS? How do you ensure the quality?
We have professional research staff and strict production,inspection and package process.We always insist
quality smart locker and emphasize on maintaining long-term relationships with partners.All our furniture
adopt acid pickling, phosphating, degreasing anti-rust treatment, and eco-friendly epoxy resin paint spraying.
We have a number of QC personnel with many years of production and inspection experience inspect product
during production.After production finished, all products will be re-inspect one by one carefully before packing.
2.I can't find the product in need on your website, can you help me?
Our product range is much larger than what is displayed on our website, so please feel free to contact us.
To customize one.according to your specail requirements is no problem with us.
3.Is there any minimum order quantity ? Can we place a small order?
In general, Trail order is accepted, normal order is based on the container.Small order is available for new
customers, we can work on Ex-work term.
4.How about your after sales service?
Warranty of all UPUS products are 1 years, Non human operation damage, our company provides accessories,
and the customer pays for the shipping cost. One year later, the customer pays for the accessories and shipping cost.
