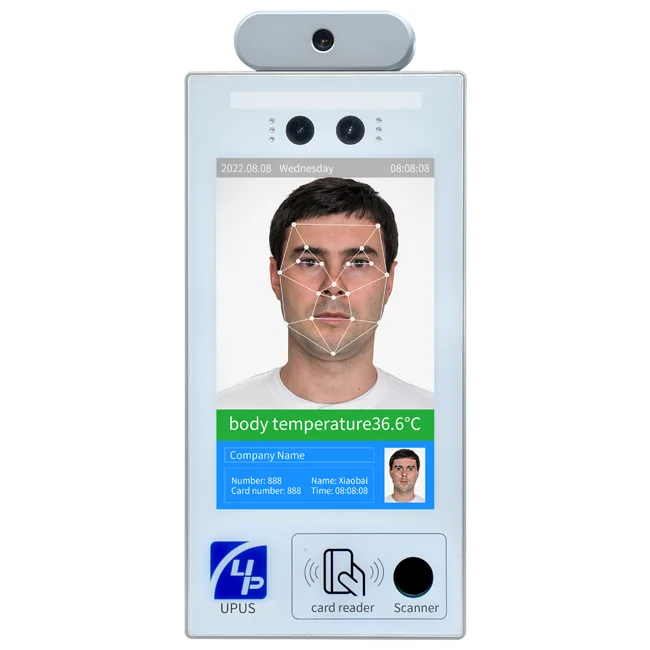

Face Recognition Temperature Detection Turnstile RFID Swing Barrier Gate with Consumer Electronics Technology

Introduction

Product Description

Product Name	UPFACE-001
Material	Aluminum alloy
Function	Attendance / access control / face recognition / remote temperature detection
Package	Carton + pearl cotton
Hardware	CPU: ARM RK3288 4 core 64-bit processor, large core cortex-a72 (dual-core) + small core cortex-a53 (quad-core) main frequency 2.0GHz Memory: RAM 2GB Store: ROM 8GB Operating system: Android 5.1 Display: 7 inch LCD screen, resolution: 1024* 600@60hz
Performance	Identification height: 1.2-2.2 m Identification distance: 0.5-3 m The temperature detection distance: 0.5 meters Recognition technology: supports mask recognition + infrared temperature detection The face Angle: 30 degrees left or right, 30 degrees up or down Recognition time: detection tracking 20ms, feature extraction 300ms Status display: name temperature broadcast display, custom information broadcast display
Conventional parameters	Operating temperature: -10℃ -+ 50℃ Working humidity: 10 ~ 90% relative humidity, no condensation Power supply: DC12V / 3A Device power consumption: ≤ 25W Equipment size: 22513227mm (length * width * height) Equipment weight: 1.2kg (depending on configuration)

Face Recognition Temperature Detection Turnstile RFID Swing Barrier Gate with Consumer Electronics Technology supplier

Face Recognition Temperature Detection Turnstile RFID Swing Barrier Gate with Consumer Electronics Technology factory

Face Recognition Temperature Detection Turnstile RFID Swing Barrier Gate with Consumer Electronics Technology manufacture

Face Recognition Temperature Detection Turnstile RFID Swing Barrier Gate with Consumer Electronics Technology details

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

1.Support face recognition with mask and temperature detection;

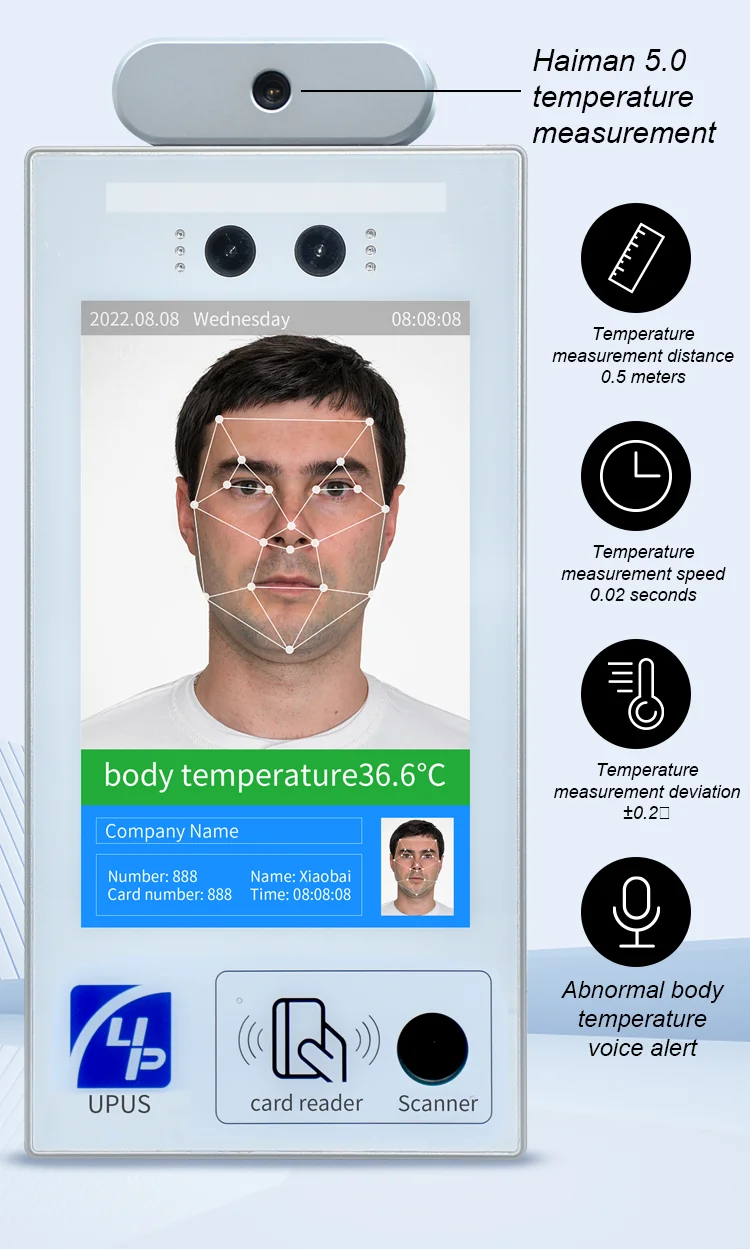

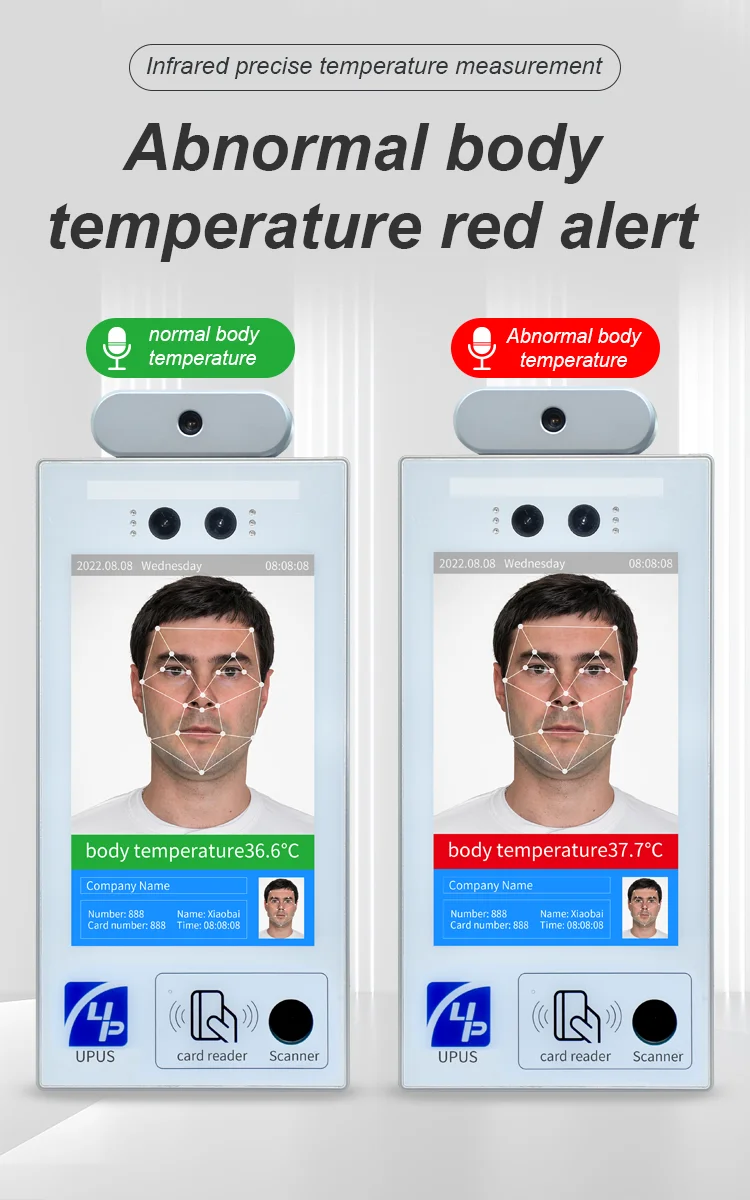

2.Built-in low-power body temperature detection module, complete the detection at the second level, the detection distance is 0.5m, the temperature measurement accuracy is ±0.5℃;

3.Fast recognition, complete temperature detection in seconds, and record and push the data;

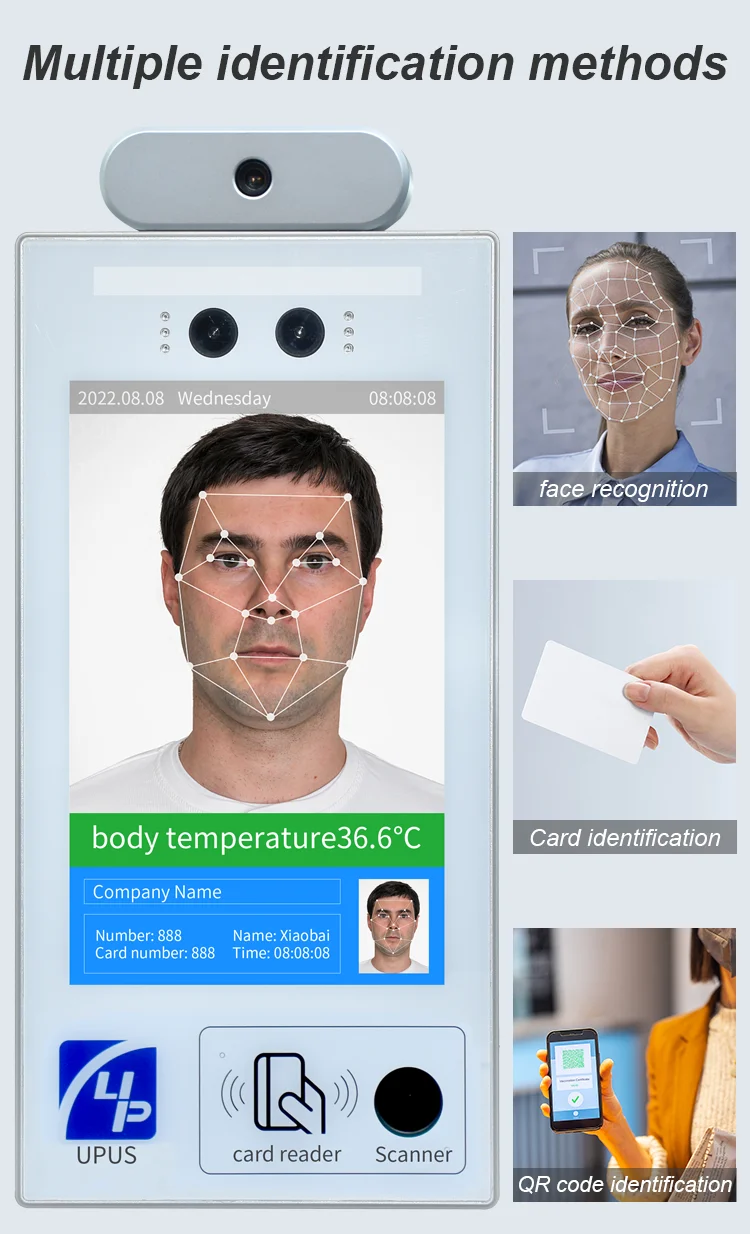

4. Support external qr code scanner, id card /IC card reader;

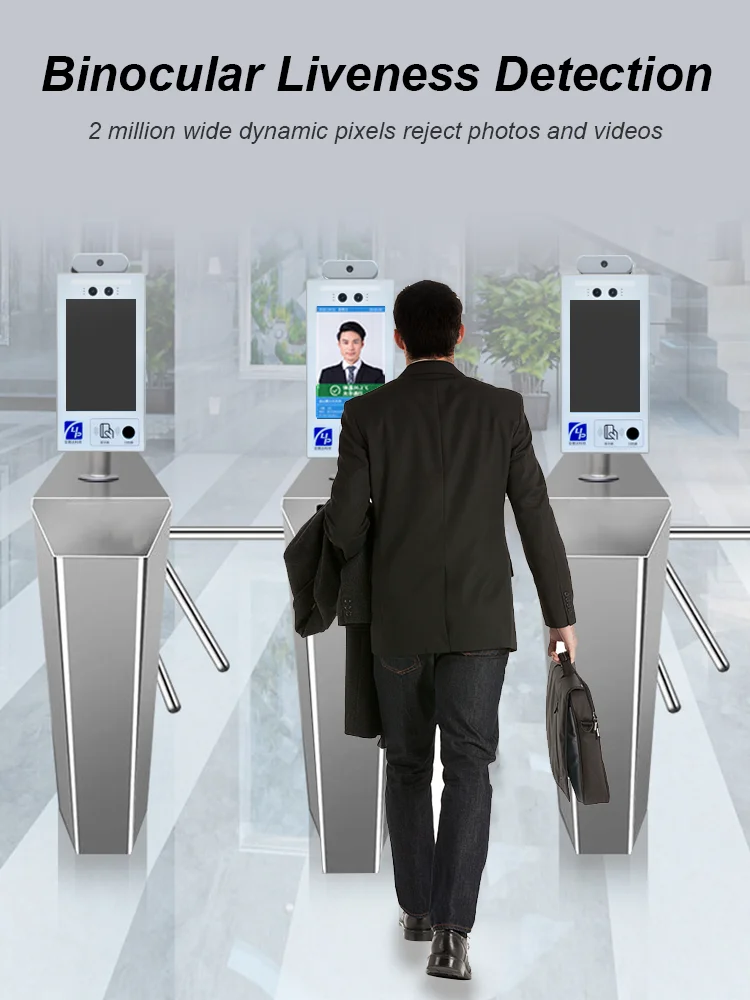

5. Support 1: N verification, 1: N binocular in vivo detection to prevent photo and video attacks;

6. 1: N has a high pattern recognition accuracy. When the face database is 5000, the error rate is 99.85%.

7. Adopt dynamic face detection and tracking recognition algorithm based on video stream;

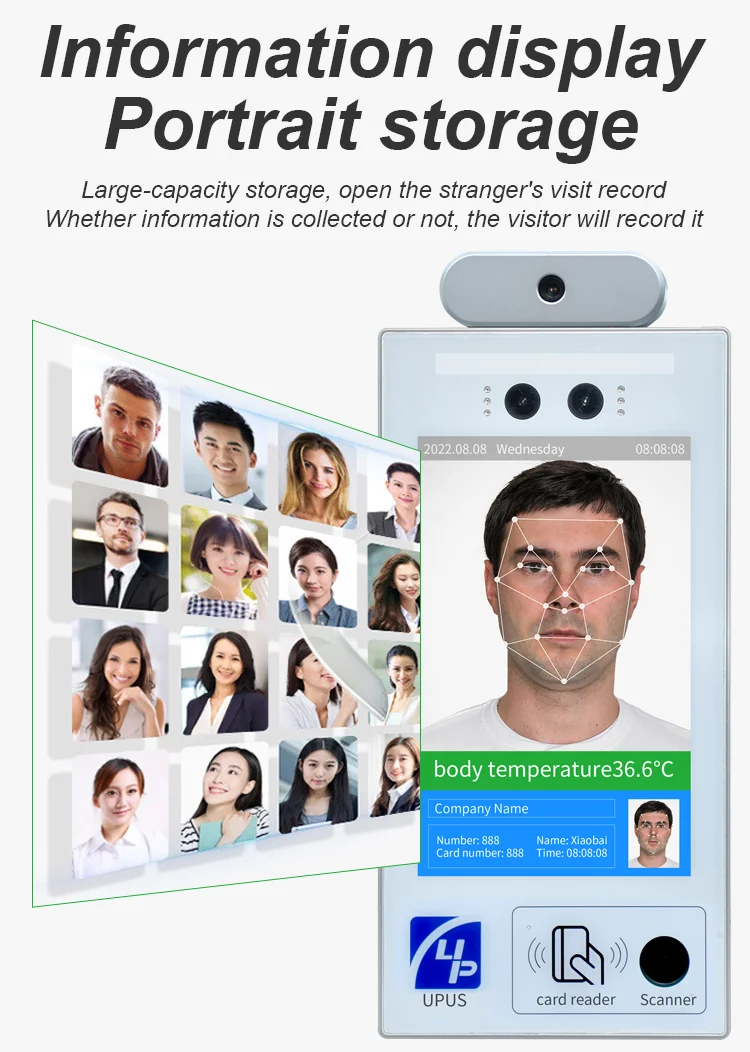

8. Offline storage of 100,000 face photos and recognition records;

9. Support face recognition on-site photo saving;

10. Support serial port and wigan output, and support configuration of output content;

11. Support offline LAN device deployment, support online HTTP transport cloud deployment;

12. Support the light supplement at night with photosensitive sensing;

13. Support screen display content configuration and customize company name;

14. Support identification distance configuration.

15. It supports the reservation of visiting passenger plane, and the WeChat official develops the functions of self-service reservation of visitors and face registration of users

16. Support interface docking and customization;

Product Usage

Related Products

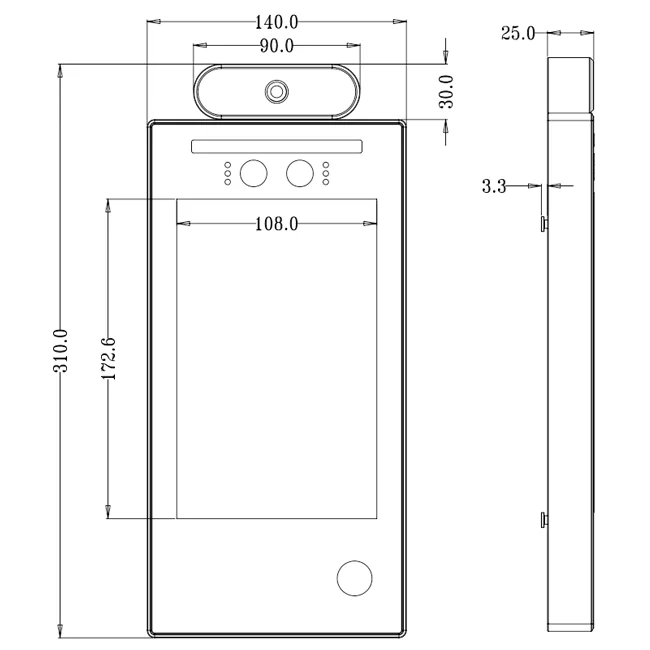

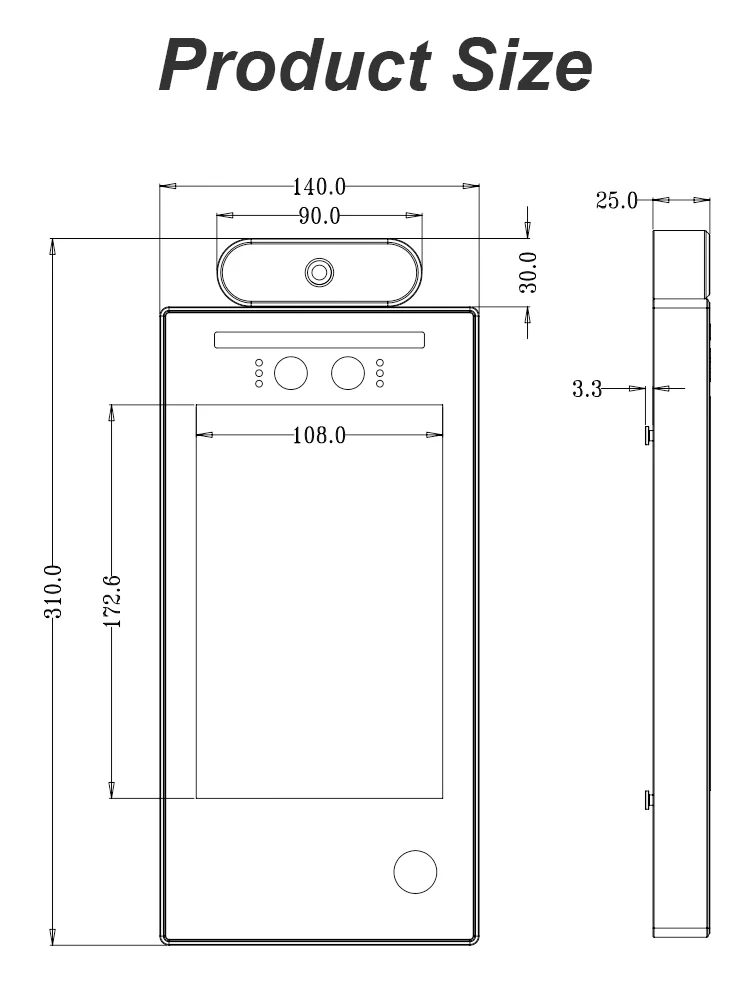

Product size, specifications and a variety of installation methods

Company Introduction

Shenzhen UPUS Technology Co., Ltd (UPUS), since its establishment in 2006, UPUS has been focusing on R&D to information system and integration solution to the IoT. We have helped our clients to create more intelligent application scenarios for manufacturing industry, banks, schools, hospitals, public inspection and law institutions, public libraries, business centers and communities. The actual implementation of many projects enables us to accumulate rich experience in system research and development as well as IoT hardware integration, which will be a good guarantee for you to solve problems and pain points in the process of humanized and intelligent construction. UPUS Shenzhen R&D center advocates the enterprise spirit of "professional, efficient and innovative", with efficient talents, the most advanced technology, and customers' actual business needs as the guidance, to provide customers with in-depth customization of application software and integrated solutions of the IoT.

FAQ

1. Why should we choose UPUS? How do you ensure the quality? We have professional research staff and strict production,inspection and package process.We always insist quality smart locker and emphasize on maintaining long-term relationships with partners.All our furniture adopt acid pickling, phosphating, degreasing anti-rust treatment, and eco-friendly epoxy resin paint spraying.We have a number of QC personnel with many years of production and inspection experience inspect product during production.After production finished, all products will be re-inspect one by one carefully before packing.2. I can't find the product in need on your website, can you help me? Our product range is much larger than what is displayed on our website, so please feel free to contact us. To customize one.according to your specail requirements is no problem with us.3.Is there any minimum order quantity ? Can we place a small order? In general, Trail order is accepted, normal order is based on the container.Small order is available for new customers, we can work on Ex-work term.4.How about your after sales service? Warranty of all UPUS products are 5 years, it can be extended as per customer's special requirements.For defects or damage units, UPUS will resend the units along with your next order.
