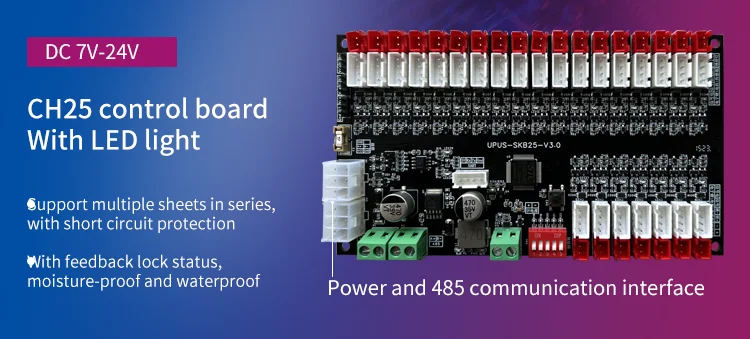

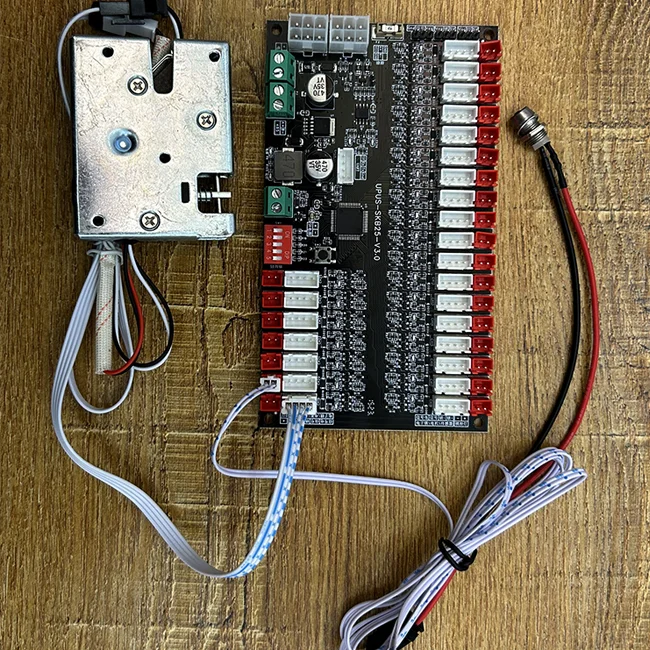

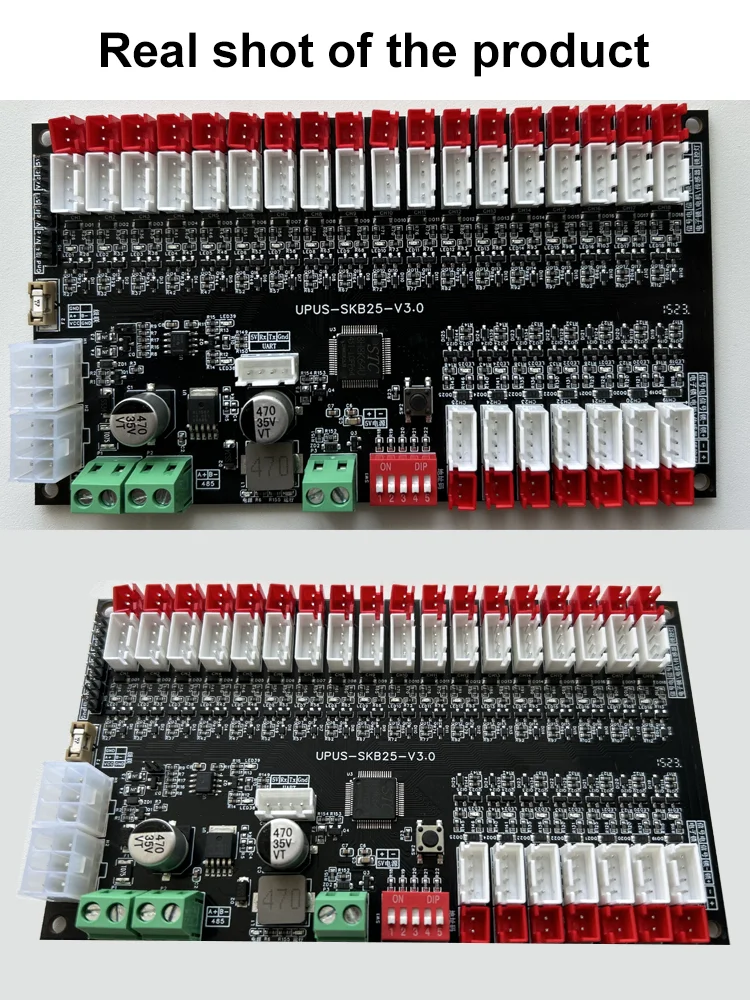

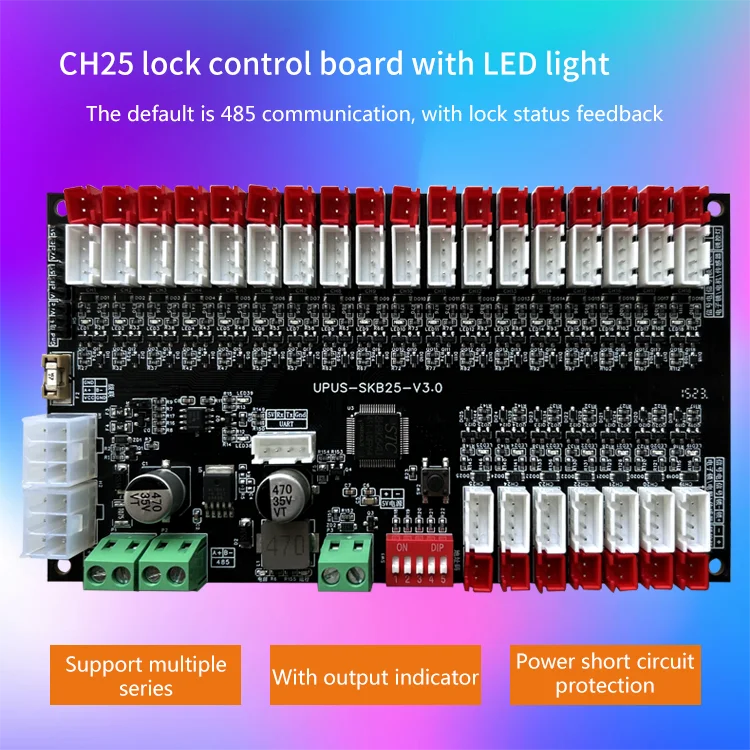

Upus Rs485 Communication Protocol Electromagnetic Lock 25CH Controller Smart Locker Lock Control Board Vending Machine Board

Spu:
1601441013131

Introduction

Product Description

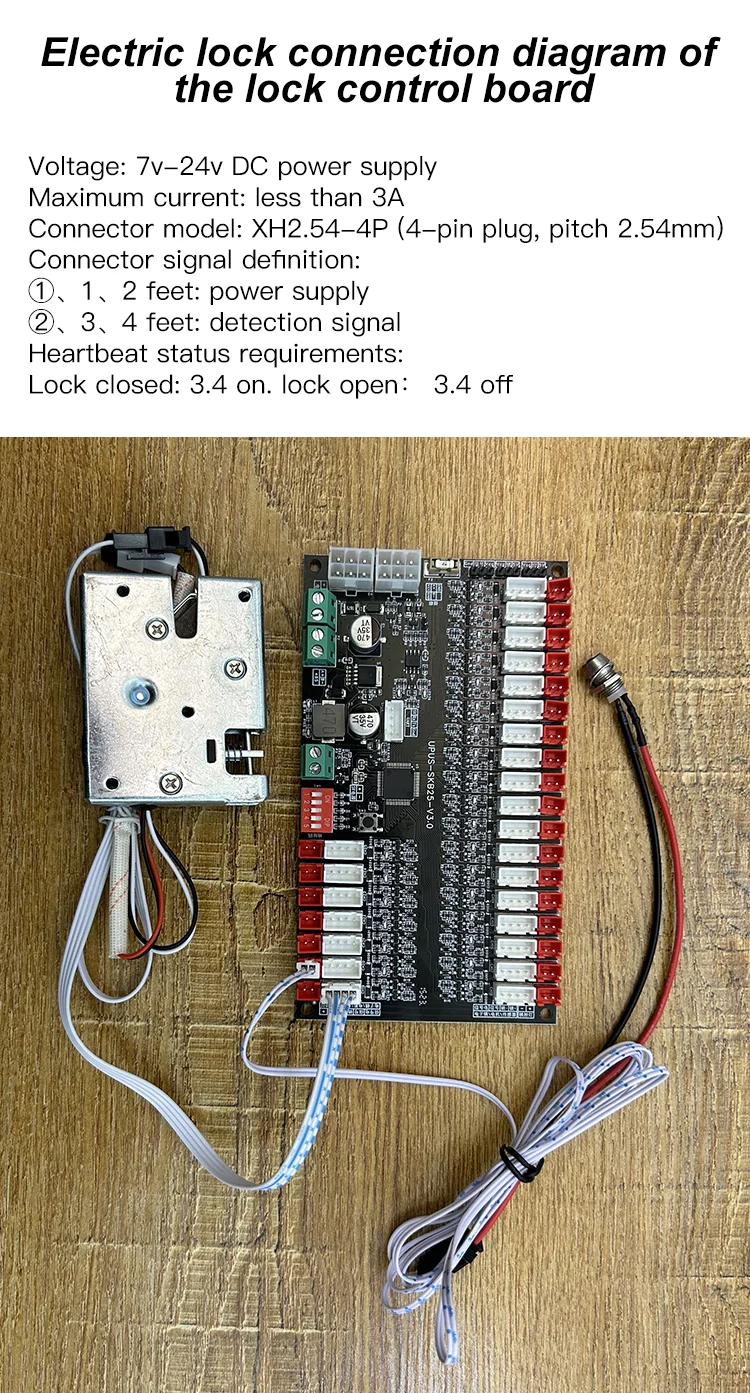

Lock control
board		 unlock status feedback
Operating
Voltage		 7v-24v DC power supply
communicationmethod RS485 communication, Baud rate can be set
State feedbackmethod Feedback through query commands, and activefeedbackfunction can be selected by remarks
Every lock, lightTerminal outputvoltage 5V or VCC
Standby powerconsumption 10mA

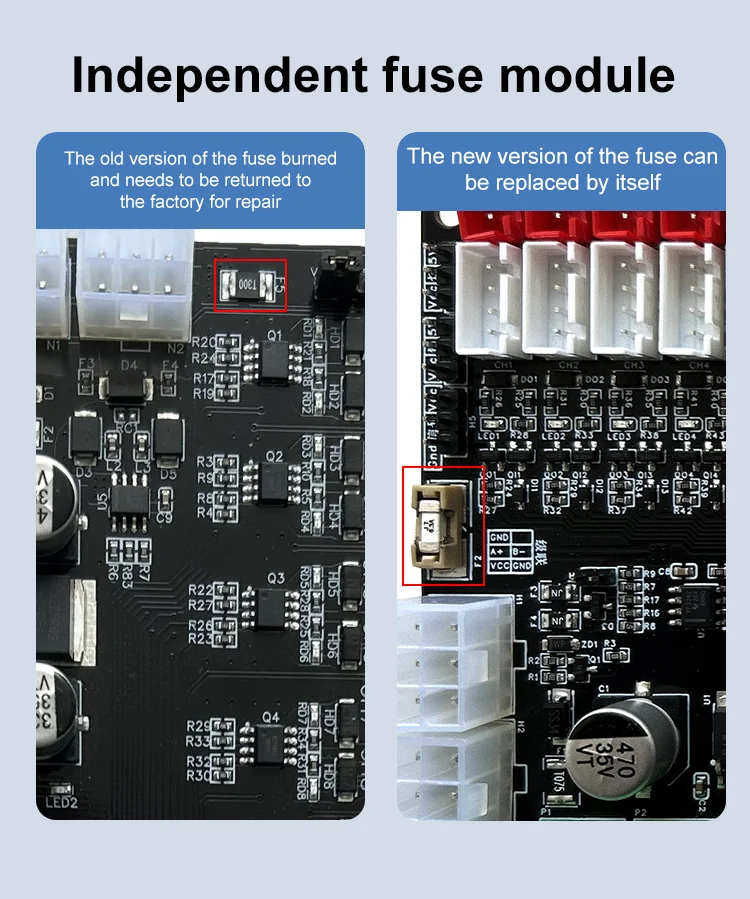

Short circuitprotectiontrigger current 3A
Each lock,light terminalOutput current

Maximum current: 5A
Short-time high current: 2A~5A

Continuous working current: 2A
